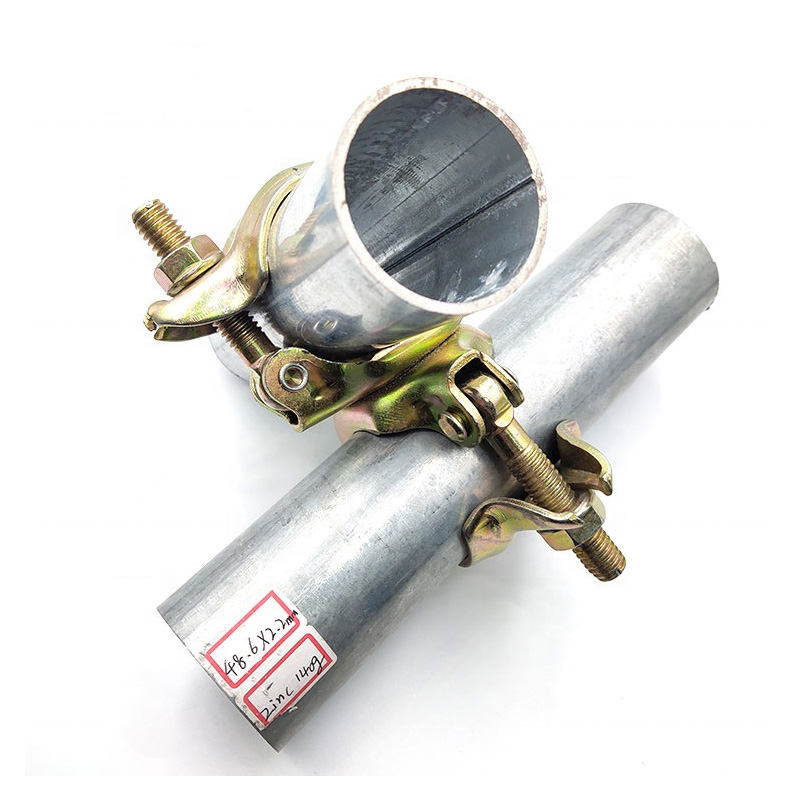

EN74 Standard Painted and Galvanized Steel Scaffolding Coupler

Short Description:

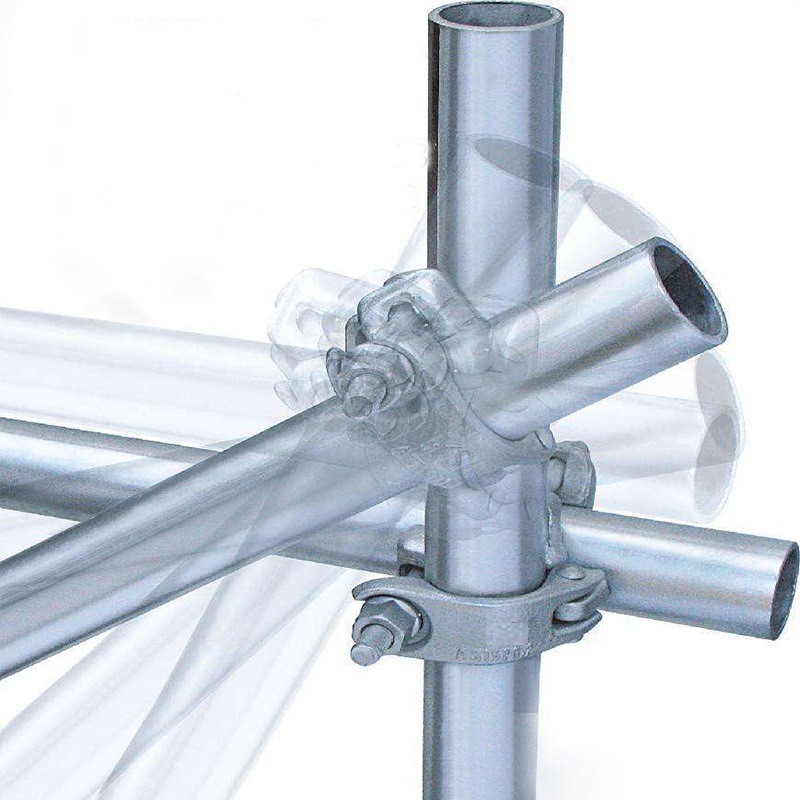

scaffolding clamp is a device used at a joint between pipes on a scaffolding structure to secure those pipes in place. Scaffolding structures are used at construction sites to allow workers to climb up to higher levels safely and securely, and the scaffold is usually made from strong, high-grade metal such as steel. Each steel pipe must be affixed to another to create a sturdy structure, and at every joint, a scaffolding clamp can be used to create an angle or a straight line and tightly secure the components for use.

Min.Order Quantity: One container

Production time: usually 25 days

Port: Xingang Tianjin Port in China

Payment Terms: L/C,D/A,D/P,T/T

Standard: EN 74-1:2005; EN 74-2:2009; AS/NZS 1576.2:2009; BS 1139-2.2:2009+A1:2015; ANSI/SSFI SC100-5/05; GB 15831-2006; GB 24910-2010.

Send email to us Download as PDF

Product Detail

Product Tags

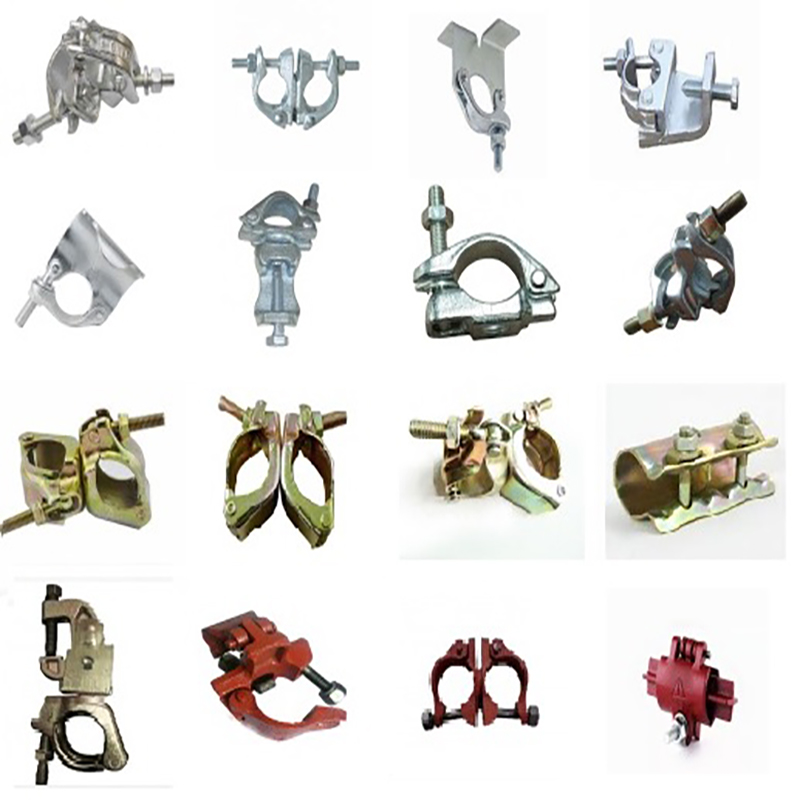

Scaffolding Coupler

Standard ：EN 74-1:2005; EN 74-2:2009; AS/NZS 1576.2:2009; BS 1139-2.2:2009+A1:2015; ANSI/SSFI SC100-5/05; GB 15831-2006; GB 24910-2010.

BS DF Double Coupler

48.3*48.3 mm/ 1 kg

BS DF Swivel Coupler

48.3*48.3 mm/ 1.1 kg

BS DF BRC ( board retaining coupler)

48.3 mm/ 0.63 kg

BS DF Girder Coupler

48.3 mm/ 1.5 kg

BS DF Putlog Coupler

48.3 mm/ 0.65 kg

BS DF Swivel Girder Coupler

48.3 mm/ 1.6 kg

BS DF Half Coupler

48.3 mm/ 0.5 kg

German Drop Forged Double Coupler

48.3*48.3 mm/ 1.25 kg

JIS Pressed Double Coupler

48.6 *48.6mm/ 0.5-0.65kg kg

JIS Swivel Coupler

48.6 *48.6mm/ 0.5-0.65kg

Korea Pressed Double Couple

48.6 *48.6mm/ 0.67 kg

BS Pressed Joint Pin coupler

48.3 mm/ 0.7 kg

BS Pressed Sleeve Coupler

48.3 mm/ 1 kg

Pressed Limpet Coupler

48.3 mm/ 0.63 kg

BS Pressed Ladder Coupler

48.3 mm/ 0.5 kg

Pressed Fencing Coupler

48.3 mm/ 0.36 kg

JIS Pressed Beam Clamp

48.6 mm/ 0.98 kg

Casting Fixed Coupler

48.3*48.3 mm/ 1 kg

Casting Swivel Coupler

48.3 *48.3 mm/ 1 kg

Casting Jiont Pin Coupler

48.3 mm/ 1 kg

Scaffolding Couplers Size Chart:

For other sizes, contact with us directly.

Product Name	Standard Type	Craft Type	Outer Diameter	U.W/kg
double coupler	British(BS)	Drop Forged	48.3mm	1
swivel coupler	British(BS)	Drop Forged	48.3mm	1.1
putlog coupler	British(BS)	Drop Forged	48.3mm	0.65
girder coupler	British(BS)	Drop Forged	48.3mm	1.5
swivel girder coupler	British(BS)	Drop Forged	48.3mm	1.6
borad retaining coupler	British(BS)	Drop Forged	48.3mm	0.63
half coupler	British(BS)	Drop Forged	48.3mm	0.512
sleeve coupler	British(BS)	Drop Forged	48.3mm	1
inner jiont pin coupler	British(BS)	Drop Forged	48.3mm	1.05
ladder coupler	British(BS)	pressed	48.3mm	0.5
limpet coupler	British(BS)	pressed	48.3mm	0.5
double coupler	British(BS)	pressed	48.3mm	0.82
swivel coupler	British(BS)	pressed	48.3mm	1.105
putlog coupler	British(BS)	pressed	48.3mm	0.57
borad retaining coupler	British(BS)	pressed	48.3mm	0.56
half coupler	British(BS)	pressed	48.3mm	0.5
sleeve coupler	British(BS)	pressed	48.3mm	1
inner jiont pin coupler	British(BS)	pressed	48.3mm	0.7
double coupler 110°	JIS	pressed	48.6mm	0.5-0.65
double coupler 60*60	JIS	pressed	60mm	0.5-0.65
swivel coupler 110°	JIS	pressed	48.6mm	0.5-0.65
swivel coupler 48*60	JIS	pressed	48.6*60.5mm	0.5-0.65
beam clamp	JIS	pressed	48.6mm	0.98
inner jiont pin coupler	JIS	pressed	48.6mm	0.67
double coupler 90°	Korea	pressed	48.6mm	0.67
swivel coupler 90°	Korea	pressed	48.6mm	0.65
double coupler	German	Drop Forged	48.3mm	1.25
swivel coupler	German	Drop Forged	48.3mm	1.45
double coupler	Italian	pressed	48.3mm	1.4
swivel coupler	Italian	pressed	48.3mm	1.48
