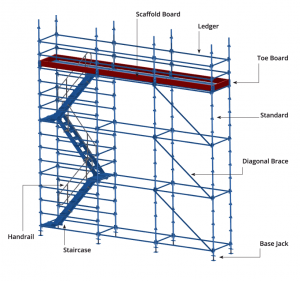

Kwikstage Scaffolding System

Short Description:

Kwikstage is a kind of modular scaffolding system, which is versatile and serves various purposes. This kind of scaffolding system is highly useful in situations where the facade of the building is complex, and a regular facade scaffold cannot be positioned.

Kwikstage scaffolding is designed to serve several purposes, but mainly center bays and shoring floors. As mentioned before, quick stage has the ability to mold itself to the shape of the structure being built, which is why it creates no complication when building arch, angular or directional bridges. It is used in formwork and construction both.

Min.Order Quantity: One container

Production time: usually 25 days

Port: Xingang Tianjin Port in China

Payment Terms: L/C,D/A,D/P,T/T

Standard: AS/NZS 1576

Finishing: Hot dip galvanized / Pre - galvanized /painted /power coated

Material: Q235, Q355

Send email to us Download as PDF

Product Detail

Product Tags

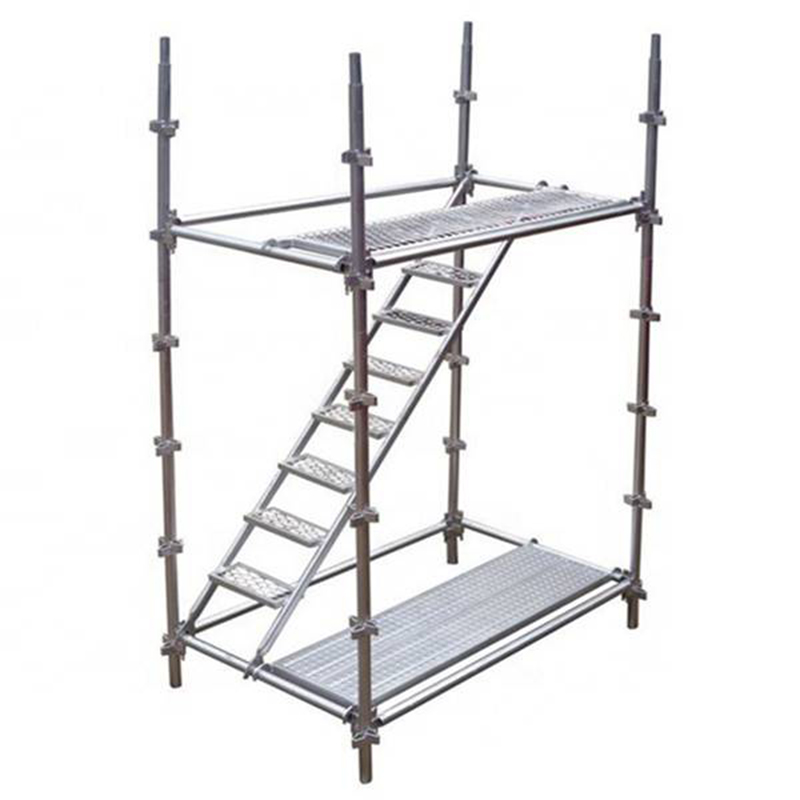

Kwikstage Scaffolding System

Standard: AS/NZS 1576

Finishing: painted or galvanized

Kwikstage standard/ vertical

Standard: AS/NZS 1576 Material: Q235

Finishing: painted or galvanized Tube: Φ48.3*4 mm

With "y" pressings in clusters at 495mm intervals

Item No.	Length	Weight
YFKS 300	3 m / 9’9”	17.2 kg / 37.84 lbs
YFKS 250	2.5m / 8’1.5”	14.4 kg / 31.68 lbs
YFKS 200	2m / 6’6”	11.7 kg / 25.77 lbs
YFKS 150	1.5m / 4’ 10.5”	8.5 kg / 18.7 lbs
YFKS 100	1m / 3’3”	6.2 kg / 13.64 lbs
YFKS 050	0.5m / 1’ 7.5”	3 kg / 6.6 lbs

Kwikstage ledger/ Horizontal

Standard: AS/NZS 1576 Material: Q235

Finishing: painted or galvanized Tube: Φ48.3*3.25 mm

Fit into upper “v” pressings on standards

Item No.	Length	Weight
YFKL 300	3 m / 9’10”	12.5 kg / 27.56 lbs
YFKL 240	2.4 m / 8’	9.2 kg / 20.24 lbs
YFKL 180	1.8 m / 6’	7 kg / 15.4 lbs
YFKL 120	1.2 m / 4’ 2”	5.6 kg / 12.32 lbs
YFKL 070	0.7 m / 2’3.5”	3.85 kg / 8.49 lbs
YFKL 050	0.5 m / 1’ 7.5”	3.45 kg / 7.61 lbs

Kwikstage transom

Standard: AS/NZS 1576 Material: Q235

Finishing: painted or galvanized Spec: 50*50*5 mm

Fit into lower "V" pressings on standards Flanges provide seating for decking components

Item No.	Length	Weight
YFKT 240	2.4 m / 8’	21 kg / 46.3 lbs
YFKT 180	1.8 m / 6’	15 kg / 33.07 lbs
YFKT 120	1.2 m / 4’ 2”	9.8 kg / 21.6 lbs
YFKT 070	0.7 m / 2’3.5”	5.8 kg / 12.79 lbs
YFKT 050	0.5 m / 1’ 7.5”	4.5 kg / 9.92 lbs

Kwikstage diagonal brace

Standard: AS/NZS 1576 Material: Q235

Finishing: painted or galvanized Tube: Φ48.3*2.5 mm

Fit into outside V" pressings on standard.

Item No.	Length	Weight
YFKB 320	3.2 m / 10’6”	13.4 kg / 29.54 lbs
YFKB 270	2.7 m / 8’10.5”	11.5 kg / 25.35 lbs
YFKB 200	2 m / 6’ 7”	8.6 kg / 18.96 lbs
YFKB 170	1.7 m / 5’ 7”	8.4 kg / 18.52 lbs

Kwikstage Tie Bar

Standard: AS/NZS 1576 Material: Q235

Finishing: painted or galvanized Spec: 40*40*4 mm

Steel angle with curved lugs at each end. Fit into 2 and 3 board platform brackets Used to prevent spreading of 2 and 3 board platform brackets.

Item No.	Length	Weight
YFKTB 240	2.4 m / 8’	7 kg / 15.43 lbs
YFKTB 180	1.8 m / 6’	5.2 kg / 11.46 lbs
YFKTB 120	1.2 m / 4’	3.5 kg / 7.72 lbs
YFKTB 070	0.7 m / 2’3.5”	3.2kg / 7.05 lbs

Kwikstage steel plank

Standard: AS/NZS 1577 Material: Q235

Finish: galvanized Spec: W 225 mm*H 65mm*T 1.8mm

Item No.	Length	Weight
YFKP 240	2420 mm / 8’	14.94 kg / 32.95 lbs
YFKP 180	1810 mm / 6’	11.18 kg / 24.66 lbs
YFKP 120	1250 mm / 4’2”	7.7 kg / 16.98 lbs
YFKP 070	740mm/ 2' 6"	4.8 kg / 10.6 lbs
